Self Building Underground Facility [Universal Modules]

  • 27
  • 14
  • 39
avatar Gheppio
Contest Judge
Level 49 : Master Engineer
228
This is a self building structure which manage its development autonomously.
Every time it's activated it will generate a different layout.
Said layouts are pseudo-randomic fractal-like mazes and may be easy to get lost in them, be careful!

The Clock Room

In the center under the floor there is a simple low-frequency hopper clock with a double pulser,
it's super-compact and adjustable.
When it's active it sends pulses through the whole structure and the extremities of the facility grow other modules.
It's the heart of the structure!

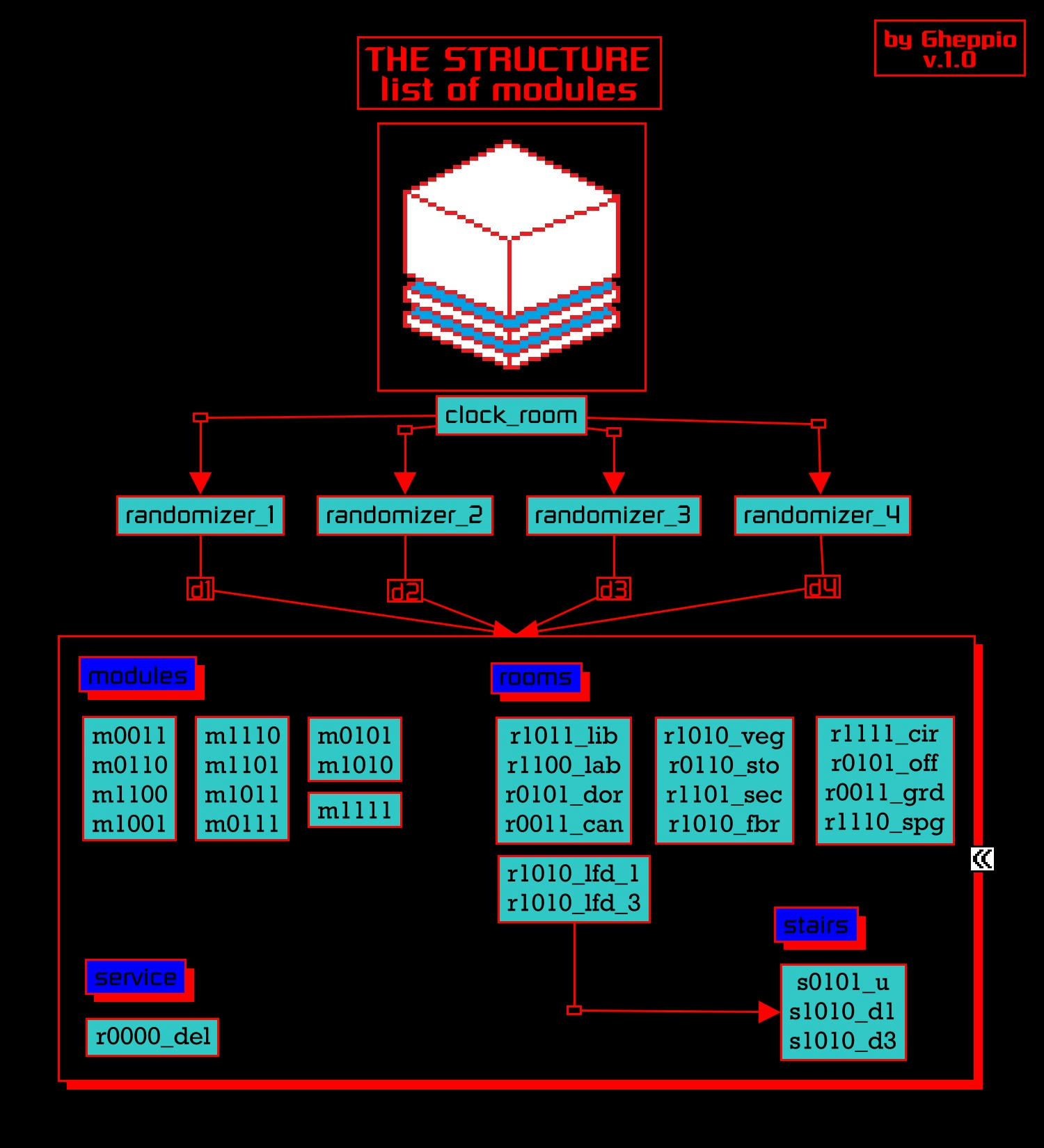

The Randomizers

The 4 rooms horizontally adjacent to the clock are the randomizers.
These rooms choose which modules will grow at the far end of the structure.

All The Others

Other modules contain rooms and corridors which will be part of the structure.
m- module, connection corridor
r- room with specific purpose
s- stair, unit of vertical connection

Instructions

►Turn on the clock with the 2 levers.
►Wait around 1min while the facility grows.
►Turn clock off & wait that pulses are extinguished. (no lag)
►Explore! ☻

Future Objectives

■Iteration counter
■Modules for expansion in up direction (stairs)
■Module variety expansion
■Evaluation of semi-autonomous sub-structures (pits, large corridors, surfaces)
■Optimization (model changes, subrandomizers, ecc...)

A presentation video by africalinguist!

Progress75% complete
Tags

1 Update Logs

Update v.1.1 : 10/07/2017 3:48:46 amOct 7th, 2017
